Coil Transfer Cart for Coil Handling

Coil transfer carts can be divided into rail transfer cars with fixed track and trackless transfer cars which can run in any direction according to the running route.
Load capacity: 1-500t customized
Dimension: Can be customized
Control system: Button control and remote control, or PLC
Running speed:20-30m/min
Power supply: Battery/Busbar/Cable Reel/Low voltage rail optional
Handling Material: Coil, steel coil, al coil, galvanized coil, rolls, paper……

Share With:
Description:

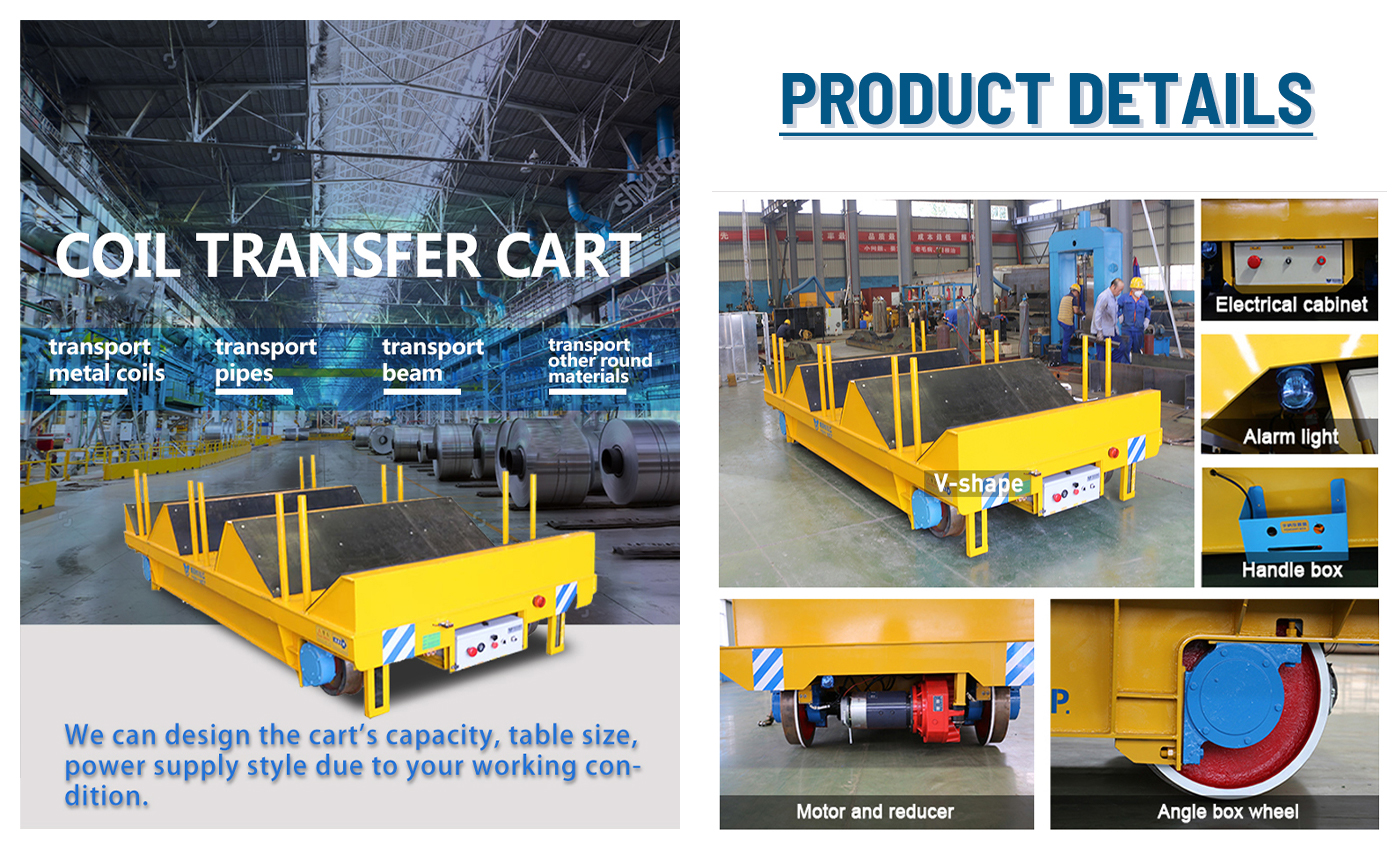

What is Coil Transfer Cart

Coil transfer cart from Perfect is a transfer cart with removable v-decks or rollers. The v-decks and rollers attached to the platform of the transfer cart are designed to make the coils run more smoothly and prevent them from falling off. The distance between the v-decks on the transfer cart platform can be adjusted according to the size of the coils and is mainly used for handling and transporting coils of metal, including coils and rolls. You can also read the solution article about Coil Transfer Cart Turkey.

We offer perfectly engineered Coil Transfer Trolleys. They come in different specifications and capacities to meet industrial demand. These transfer trolleys are ideal for coils, billets, or saw pipes. They effectively handle and transfer the pipes, billets, and coils. These machines are designed to deliver optimum performance and safety. There are good capacities, up to 500 tons, and speeds up to 30 m/min. Equipped with Electric motor / hydraulic motor-based gearbox, they provide consistent performance and support.

Coil transfer carts have two options from Perfect, one is rail transfer carts with fixed track, and another is coil trackless transfer carts which can run in any direction according to the running route.

We create special solutions with our specially crafted coil transfer carts to meet your business needs and ensure uninterrupted product flow between workshops.

Coil Transfer Cart From China
Coil Transfer Cart 1-500 Tons

Why Are Coil Transfer Trolleys Necessary for Coil Handling

Coil transfer trolleys are necessary for coil handling due to several critical reasons:

Electric coil rail transfer cart 50 ton customized

  • Safety: Manually moving big coils puts personnel at serious risk for injury. Coil transfer trolleys lessen the need for manual lifting and the risk of accidents brought on by dropping or handling heavy coils improperly, as well as back strains, muscle sprains, and other ailments.
  • Efficiency: Compared to manual handling, coil transfer trolleys streamline the transportation process, making it quicker and more effective. As a result, organizations experience decreased production times, higher productivity, and cost savings.
  • Capacity: Coils can be incredibly bulky and heavy when employed in a variety of industries. Various coil sizes and weights that would be difficult or impossible for personnel to operate manually can be handled by coil transfer carts.
  • Precision: Coils can be positioned and placed precisely at processing or storage locations thanks to trolleys’ fine control over coil movement. Maintaining consistency and quality of the product depends on this accuracy.
  • Damage prevention: To prevent damage to the coils during transit, coil transfer trolleys frequently have features like cradles, rollers, or padding. This lessens the possibility of dents, scratches, or deformations, preserving the integrity of the product.
  • Versatility: These trolleys are flexible and can be used in a variety of industries and applications since they can be modified or customized to suit varied coil sizes, forms, and materials.
  • Labor savings: Trolleys result in cheaper labor expenses and less worker fatigue by minimizing the physical effort needed for coil handling. As a result, the workplace is more pleasant and productive.
  • Consistency: Coil transfer trolleys ensure that coils are carried and positioned in a consistent manner, which is crucial for quality control, helping to maintain uniformity in handling procedures.
  • Downtime reduction: Transporting coils more quickly and effectively reduces the amount of time that needs to pass between processing stages, resulting in a more efficient workflow and higher manufacturing output.
  • Compliance with regulations: Regulations controlling the secure handling of heavy goods exist in various businesses. Companies can comply with these safety and legal criteria with the use of coil transfer carts.

In conclusion, in industries that handle big coils of material, coil transfer trolleys serve a critical role in increasing safety, effectiveness, and productivity while lowering the risk of damage and promoting overall operational performance.

Power Supply Options for Coil Transfer Carts

Different Applications for Different Coil Transfer Carts
  • Rail power coil transfer cart
  • Battery power for coil transfer cart
  • AC electric motor fed by a cable reel; with enclosed conductor bars, or festoon system
  • Busbar is powered by the movement of the transfer cart to supply power to the cart
  • AGV for coil handling
  • RGV for coil handling

Types of Hot Sales for Coil Transfer Carts from Perfect

TypesPhotoPower supplyCapacity
Rail Transfer CartRail Transfer Cartbattery/cable/busbar/rail1-500T
Trackless Transfer CartTrackless Transfer Cart For Coilbattery/cable/busbar1-500T
AGVAGV for coil handlingbattery/cable/busbar/rail5-500T
RGVRGV for coil handlingbattery/cable/busbar/rail5-500T
Hot sale for coil transfer cart types

Features of Coil Transfer Trolleys

  • The capacity load and table size can be customized from 1t to 500t
  • Easy to operate and maintain
  • Precision engineered transfer trolleys
  • Rails or trackless options
  • Ideal for handling coils, billets saw pipes, etc.
  • Operators have precise control over coil positioning

Parameters of Battery Rail Transfer Trolley for Coil Handling

ModelBXC-2tBXC-20tBXC-50tBXC-100tBXC-150t
Rated Load(t)22050100150
Length(L)200040005500650010000
Width(W)15002200250028003000
Height(H)4505506509001200
Wheel Base(mm)12002800420049007000
Rail Inner Gauge(mm)1200143514352002000
Wheel Diameter (mm)270350500600600
Running Speed (m/min)0-250-200-200-200-18
Motor Power(kw)12.251015
Battery Capacity180180330440600
Battery Voltage2448487272
Running Time When Full Load4.3243.33.22.9
Running Distance for One Charge(km)6.54.843.83.2
Recommended Rail ModelP15P24P43QU100QU100

Parameters of Battery Trackless Transfer Trolley for Coil Handling

ModelBWP-2TBWP-10TBWP-20TBWP-30TBWP-50TBWP-63TBWP-150T
Rated load (T)21020305063150
length(L)20003600400045005500560010000
Width(W)1500200022002200250025003000
Height(H)4505005506006507001200
Wheel Base (mm)1200260028003200420043007000
Wheel Diameter(mm)Φ270Φ300Φ350Φ400Φ500Φ600Φ600
Ground Clearance (mm)50505050507575
Motor Power (Kw)11.62.23.556.315
Battery Capacity(Ah)180160180250330400600
Battery Voltage(V)24484848484872
Running Time When Full Load4.324.843.53.332.9
Running Distance for one Charge(Km)6.57.24.84.243.63.2
Max Wheel Load (KN)14.442.677.7110.4174221.4265.2

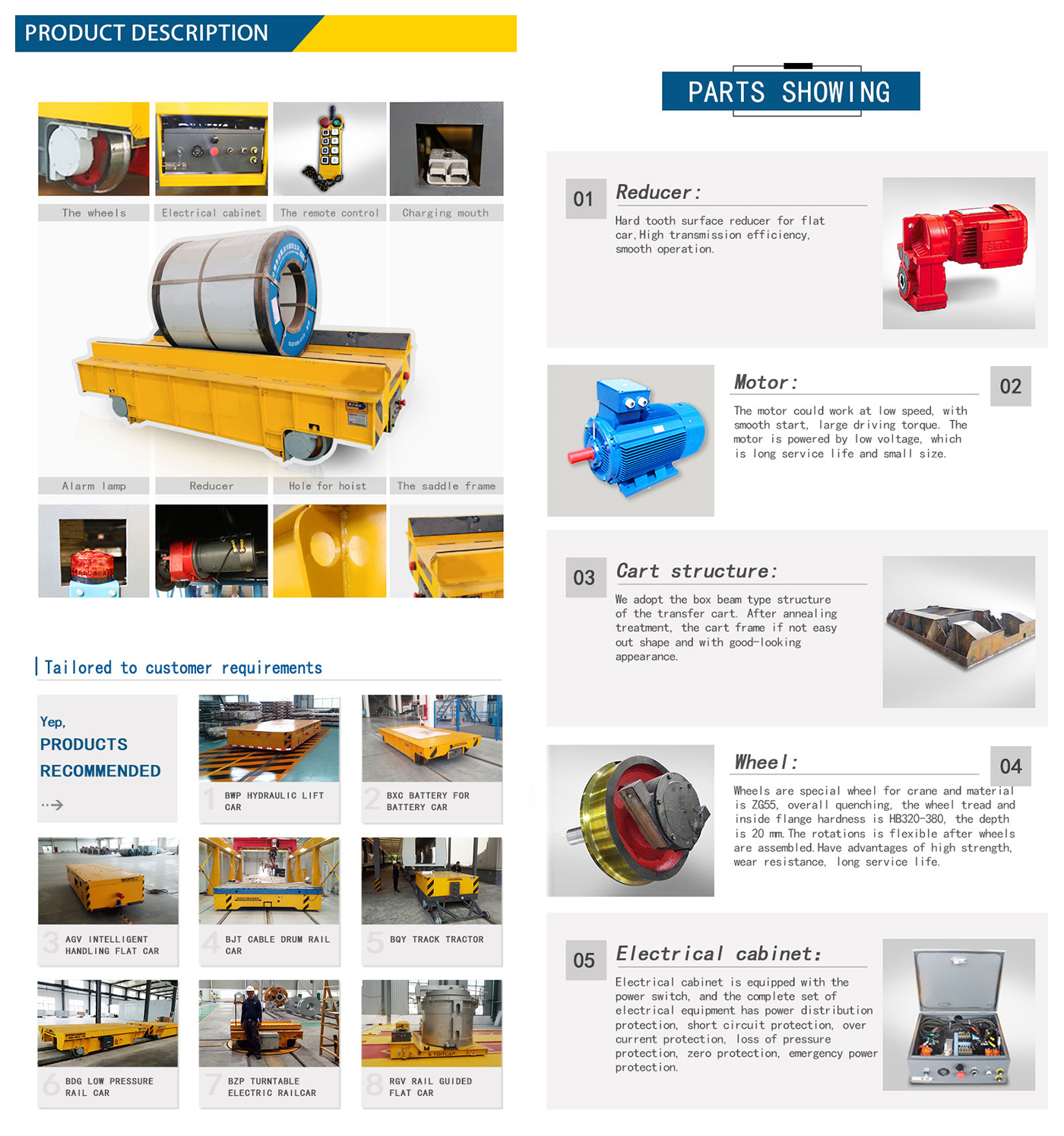

What Components of a Coil Handling Cart Can Be Customized from Perfect

Components of a Coil Handling Cart
Components of a Coil Handling Cart
  • Frame: V frame design handles cylindrical loads such as coils and steel coils. At Perfect, you can get U-frames and V-frames design.
  • Wheels or rollers: To make moving the trolley easier, these are attached to the frame. Depending on the exact use and the surface that the trolley will travel over wheels or rollers should be selected.
  • Cradles or supports: These are made to hold the coil firmly while being transported. They may be adjusted to accommodate various coil sizes and shapes depending on the design.
  • Power supply: At Perfect, you can get battery power, cable power, busbar power, low voltage rail power, and manually operated optional. which one do you need?
  • Automatic charging system: Charging easily and efficiently
  • Control system: Coil handling carts that are powered will have a control system, you can get button control and remote control from Perfect transfer cart supplier. If you need levers or PLCs to maneuver the trolley and manage its speed and direction, please tell us in advance.
  • Safety features: To prevent accidents and guarantee the security of coil transportation, coil handling carts from Perfect are furnished with safety measures like brakes, emergency stop buttons, anti-collision systems, safety rails, or barriers.
  • Load rating and capacity information: To ensure that the trolley is utilized safely, there should be obvious signs or labels showing its load rating and capacity.
  • Additional accessories: Additional components like lifting hooks, sensors, turntables, or protective covers might be included, depending on the purpose.

Different Coil Transfer Trolleys Available for Different Applications

Coil transfer trolleys come in a variety of designs, each one created to meet the needs and specifications of a particular industry. Coil transfer trolleys come in a variety of common varieties, such as:

  • Rail coil transfer trolleys: These trolleys are made to move precisely and steadily along fixed rails or tracks. They are frequently utilized in big manufacturing plants and steel mills where accurate coil transportation is necessary.
  • Battery powered coil transfer trolleys: Rechargeable batteries on these trolleys provide freedom of movement and do away with the requirement for external power sources. They are frequently employed in sectors with erratic transportation patterns.
  • Die handling coil handling carts: These trolleys are equipped with characteristics like lifting mechanisms, tilting capacities, and precision control for die transfer in the automotive and manufacturing industries since they are specifically made for handling large and heavy dies.
  • Automated Guided Vehicles (AGV): AGVs are self-driving coil transfer carts that are controlled and steered by sensors. They are utilized in sectors including automotive manufacturing and warehousing that demand automated and precise material handling.
  • Flatbed coil transfer trolleys: These trolleys, which have a flat platform or bed, are perfect for moving coils that are flat or rectangular. They are frequently employed in the paper and printing industries.
  • Cradle-type coil transfer trolleys: These trolleys are adaptable and can carry coils of various sizes and shapes since they are built with cradles or movable supports. They are used in many different industries, including building and metal processing.
  • Remote controlled coil transfer trolleys: Remote control trolleys increase safety in hazardous areas by enabling operators to control the movement of the trolley from a secure distance.
  • Customized coil transfer trolleys: Perfect provides customization choices so that trolleys can be made to meet certain needs, such as coil size, weight, and the type of products being handled.

The type of coil transfer trolley used will depend on the facility’s layout, the industry, the size and weight of the coils, and the desired level of precision. Numerous trolley designs suit these specific needs, ensuring efficient and secure coil handling in a variety of applications. For our coil transfer cart case, you can visit another page for Coil Transfer Trolley With Turntable To Cambodia, our customer has ordered two sets of coil transfer carts for his steel plants, and he is very satisfied with our carts and our service.

Application of Coil Transfer Cart

Application of Coil Transfer Carts
Application of Coil Transfer Carts
  • Steel plants: Coil transfer carts are primarily used to transport steel coils, raw materials, slabs, finished products, scrap metal, molds and dies, rolling mill rolls, furnace components, maintenance equipment, ingot handling,
  • Automotive manufacturing: In an automotive manufacturing facility, massive rolls of sheet metal or coils of steel, aluminum, or other materials can be moved to different production units using coil transfer carts.
  • Aerospace industry: During the assembly process, coil transfer carts are used to transfer large aircraft components, such as wing sections or fuselage components.
  • Shipbuilding: Coil transfer carts are used in shipyards to convey huge metal plates or sections.
  • Paper mills: Heavy paper rolls can be handled using coil transfer carts, which can aid in moving materials between different phases of production.
  • Heavy machinery manufacturing: Coil transfer carts are used to transport heavy machine components and equipment.
  • Mining: Coil transfer carts can move ore or raw materials from excavation sites to processing or transportation regions in mining operations.
  • Foundries: Coil transfer carts can move massive castings, molten metal crucibles, or molds.
  • Nuclear Industry: Coil transfer carts are used to transport heavy supplies and equipment within nuclear power reactors or research centers.
  • Warehousing: Coil transfer carts are often used to transport massive loads of supplies or goods between storage spaces and loading docks.
  • Railway: During repair and maintenance procedures, these carts can transport heavy railcar or locomotive parts.
  • Textile Industry: Coil transfer cart can be used to convey big rolls of fabric or other textile materials.
  • Renewable energy: Coil transfer carts can be used in the production of wind turbine parts, such as tower sections or generator components, for renewable energy.
  • Construction: Coil transfer cart can be used to transport bulky building materials like steel beams, concrete panels, or prefabricated building parts on construction sites.

What Maintenance and Upkeep are Required for a Coil Transfer Trolley

A coil transfer trolley needs regular maintenance and upkeep to function safely and effectively over time. The following are some essential upkeep duties and factors:

  • Regular inspection: Conduct regular visual checks of the trolley to spot any obvious symptoms of deterioration, corrosion, or missing parts. Look for damaged cradles, loose bolts, or worn-out wheels.
  • Lubrication: Follow Perfect’s instructions when lubricating moving components such as wheels, rollers, and bearings. Proper lubrication ensures friction is minimal and motion is smooth.
  • Cleaning: Maintaining cleanliness: Keep the trolley free of clutter, especially in places where coils could leave behind residue. By doing this, contamination is avoided, and the trolley’s parts are kept in good working order.
  • Battery maintenance: If the trolley runs on batteries, check the state of the batteries frequently. Maintain the proper charge level, look for corrosion on the battery terminals, and replace the batteries as needed.
  • Electrical components: If the trolley has an electrical control system, make sure that the wiring, switches, and connections are clean, undamaged, and in good working order.
  • Brake inspection: Inspection of the braking system: Make sure the braking system is functioning properly. Smooth engagement and release of the brakes are necessary to avoid abrupt stops or unexpected movements.
  • Safety features: To ensure they function as intended in the event of an emergency, test and validate the functionality of safety features, such as emergency stop buttons and safety barriers.
  • Load capacity: Watch out for overloading the trolley past its recommended limit to prevent premature wear and structural damage.
  • Alignment: Checking the alignment of the trolley’s wheels or rollers regularly will help minimize uneven wear and guarantee steady motion.
  • Documentation: Keep a log of all maintenance work, including the times and dates of inspections, repairs, and any replacement parts. This paperwork can be used to monitor the trolley’s functioning and spot wear or other problems as they develop.
  • Training: Ensure that personnel are instructed on how to use and maintain the trolley properly. This involves following suggested operating procedures and safety regulations.
  • Replacement parts: To preserve the integrity and safety of the trolley, replace any worn or damaged parts as soon as possible with genuine replacements straight from Perfect Supplier.

For the coil transfer trolley to operate as efficiently as possible, maximize its longevity, and protect the workers and the materials being transferred, regular maintenance and adherence to Perfect recommendations are essential.

Deliver and Shipping of Perfect Supplier

Deliver and Shipping
Deliveries and Shipping

Coil Transfer Trolley Factory from Perfect

Coil Transfer Trolley Factory from Perfect
Coil Transfer Trolley Factory from Perfect

What types of coil handling equipment are available?

Coil handling equipment includes various devices such as coil transfer carts, cradles, and conveyors, specifically designed for the safe and efficient handling of coils.

How does a transfer cart for coils operate?

A transfer cart for coils typically operates using a motorized system, often with customizable features for load capacity, speed, and precision in coil transportation.

What defines a heavy-duty coil transporter?

A heavy-duty coil transporter is a robust and durable vehicle designed to handle large and heavy coils, ensuring stability and safety during the transport process like coil transfer carts from Perfect transfer cart manufacturer.

What is a coil transport system?

A coil transport system comprises various components, including transfer carts, rails, and safety features, working together to move coils efficiently within a facility.

How does an industrial coil transfer vehicle differ from standard transfer carts?

An industrial coil transfer vehicle from Perfect is specifically designed with features to safely transport coils, considering factors like weight distribution, stability, and specialized attachments.

What are some coil handling solutions for manufacturing facilities?

Coil handling solutions may include motorized transfer carts, cradles, and automated systems tailored to the unique needs of manufacturing facilities dealing with coils.

Can you explain the concept of a coil transport trolley?

A coil transport trolley is a component of a coil transfer system, often motorized, designed to carry and transport coils efficiently within a facility.

Who is a notable coil transfer cart manufacturer in the industry?

Prominent coil transfer cart manufacturers like Perfect transfer cart supplier, are known for their expertise in designing reliable and efficient coil handling solutions.

What considerations are important in steel coil transport using transfer carts?

-Steel coil transport considerations include load capacity, coil dimensions, and safety features to ensure secure and damage-free transportation.

How does automated coil handling benefit industrial processes?

Automated coil handling enhances efficiency, reduces manual labor, and ensures precise movement, contributing to streamlined manufacturing processes.

What is involved in coil material handling?

Coil material handling encompasses the entire process of safely transporting, lifting, and positioning coils within a facility, often utilizing specialized equipment like transfer carts.

What factors influence the design of a coil transfer cart?

Coil transfer cart design factors include load capacity, coil dimensions, floor conditions, and safety features, ensuring optimal performance in a specific environment.

How is coil transport safety ensured during handling processes?

Coil transport safety is ensured through features such as safety sensors, braking systems, and adherence to industry standards to prevent accidents and protect personnel.

What characterizes a motorized coil cart, and how does it operate?

A motorized coil cart is powered by a motor and is equipped with controls for precise and efficient movement, providing a reliable solution for coil transportation.

What is rail-guided coil transfer, and how does it work?

Rail-guided coil transfer involves the use of rails embedded in the floor to guide the movement of the transfer cart, ensuring accurate and controlled transportation.

How does coil handling play a role in manufacturing processes?

Coil handling in manufacturing involves the systematic movement of coils to support various production stages, ensuring a seamless and efficient workflow.

Are custom coil transporters available to meet specific requirements?

Yes, custom coil transporters can be designed to meet specific load capacities, dimensions, and other requirements based on the unique needs of a facility.

What are some key specifications to consider in a coil transfer cart?

Key specifications include load capacity, dimensions, power source, and safety features, ensuring the coil transfer cart aligns with the facility’s operational needs.
