Model: BWP
Power supply: Lithium battery
Capacity: 1-500T Can be customized
Dimension: Can be customized
Ground Clearance (mm): 50/75
Wheel: Polyurethane
Running speed: 0-20m/min
Radar control: 3-0.3m
Operation method: With wire or no wire

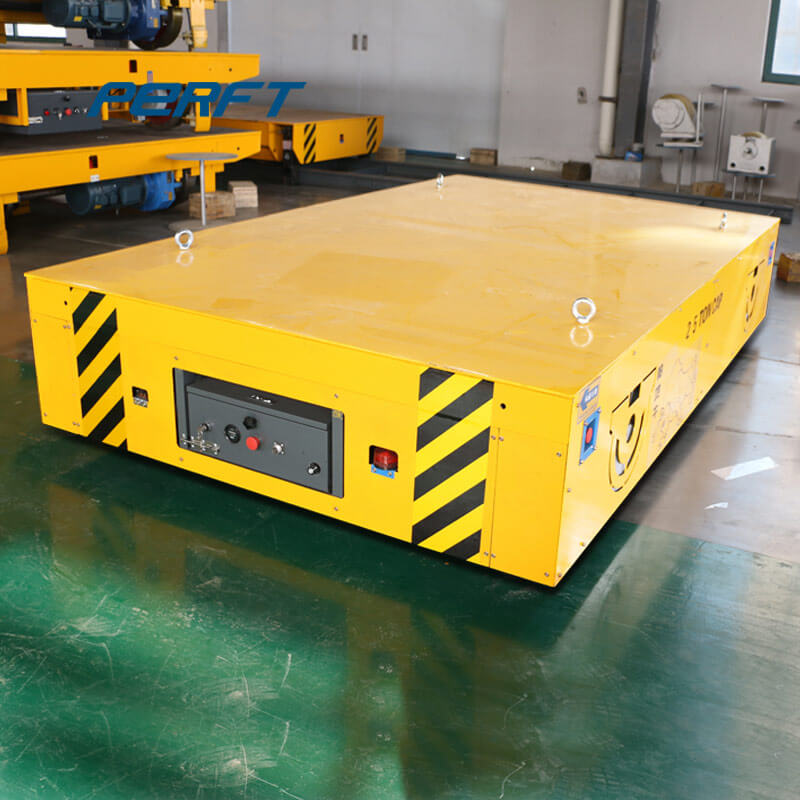

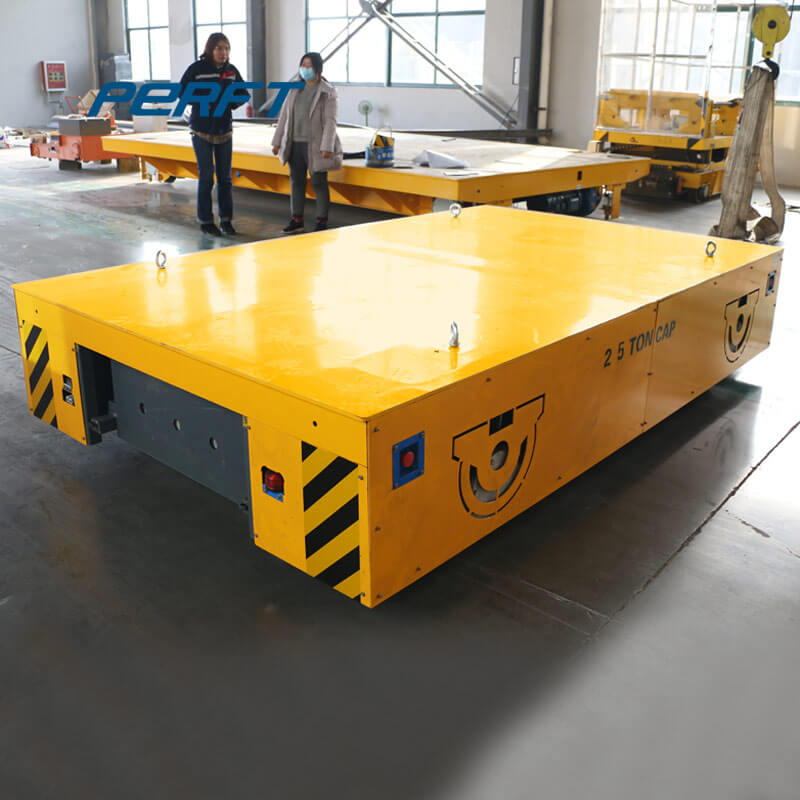

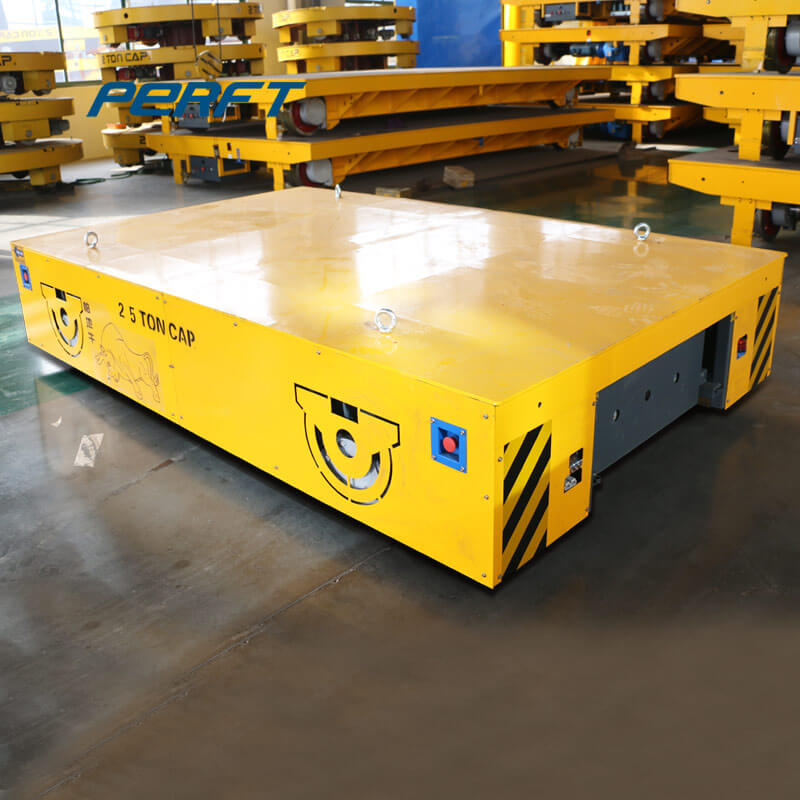

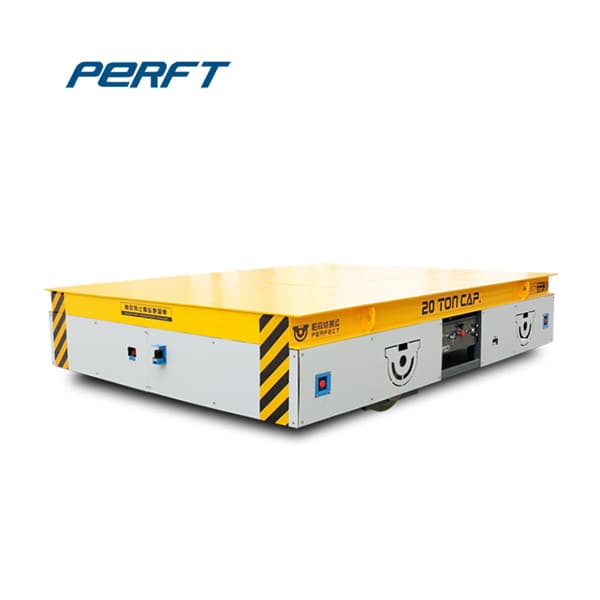

PERFECT’s lithium battery powered custom transfer cart, also known as a cross flat cart, transfer trolley, or electric flat cart, has advantages such as simple structure, easy operation and maintenance, large load capacity, and so on, with which these transfer carts are widely used in machine manufacturing and metallurgical factories, matching up with lift cranes to transport heavy objects across warehouses. Rail transfer carts are suitable for various industries, including steel mills and factories, paper roll plants, painting rooms, shipbuilding, new factory building project, machine processing lines, heavy industry, airports, and so on, to transfer or handle material and equipment from one place to another, from warehouse to workshop.
Compared with battery trackless transfer cart, Perfect also provides another lithium battery power rail transfer cart for handling solutions. Henan Perfect Handling Equipment Co., Ltd. is a professional designer and manufacturer of a wide range of transfer cars, industrial trailers, die carts, and lifting platforms that are used in metallurgy, manufacture, oil and gas, die shipyards, chemical plants, automotive, mining industry, aerospace, power generation, coal industry, paper mills, metalworking, warehouses, and many others.
Lithium battery powered industry track custom transfer cart is mounted on tracks, so you have to install the rails before using them. They can meet the most important demands: where places are very limited and pathways are extremely constrained.
Lithium battery powered industry track custom transfer cart has been created and built for its utmost working flexibility. They have no predefined pathway, can steer in any direction, and can run on any kind of floor. Power-driven trolleys are very beneficial to bring heavy duty where overhead cranes cannot reach. They are the best method for all those appliances with delicate handling issues in limited space.
For smaller loads, manual carts can be dedicated to specific workplace activities, such as shuttling materials. This often makes the carts more available for use. Transfer carts are more accommodating for moving long loads through restrictive passageways or doorways. Transfer carts are an excellent, affordable choice for heavier loads because of their ability to handle heavy loads. Transfer carts are compact in design and work well in areas with limited floor space. Another advantage over lift trucks is how the cart deck can be customized to suit specific loads.
| Model | BWP-2T | BWP-10T | BWP-20T | BWP-30T | BWP-50T | BWP-63T | BWP-150T |
| Rated load (T) | 2 | 10 | 20 | 30 | 50 | 63 | 150 |
| length(L) | 2000 | 3600 | 4000 | 4500 | 5500 | 5600 | 10000 |
| Width(W) | 1500 | 2000 | 2200 | 2200 | 2500 | 2500 | 3000 |
| Height(H) | 450 | 500 | 550 | 600 | 650 | 700 | 1200 |
| Wheel Base (mm) | 1200 | 2600 | 2800 | 3200 | 4200 | 4300 | 7000 |
| Wheel Diameter(mm) | Φ270 | Φ300 | Φ350 | Φ400 | Φ500 | Φ600 | Φ600 |
| Ground Clearance (mm) | 50 | 50 | 50 | 50 | 50 | 75 | 75 |
| Motor Power (Kw) | 1 | 1.6 | 2.2 | 3.5 | 5 | 6.3 | 15 |
| Battery Capacity(Ah) | 180 | 160 | 180 | 250 | 330 | 400 | 600 |
| Battery Voltage(V) | 24 | 48 | 48 | 48 | 48 | 48 | 72 |
| Running Time When Full Load | 4.32 | 4.8 | 4 | 3.5 | 3.3 | 3 | 2.9 |
| Running Distance for one Charge(Km) | 6.5 | 7.2 | 4.8 | 4.2 | 4 | 3.6 | 3.2 |
| Max Wheel Load (KN) | 14.4 | 42.6 | 77.7 | 110.4 | 174 | 221.4 | 265.2 |
