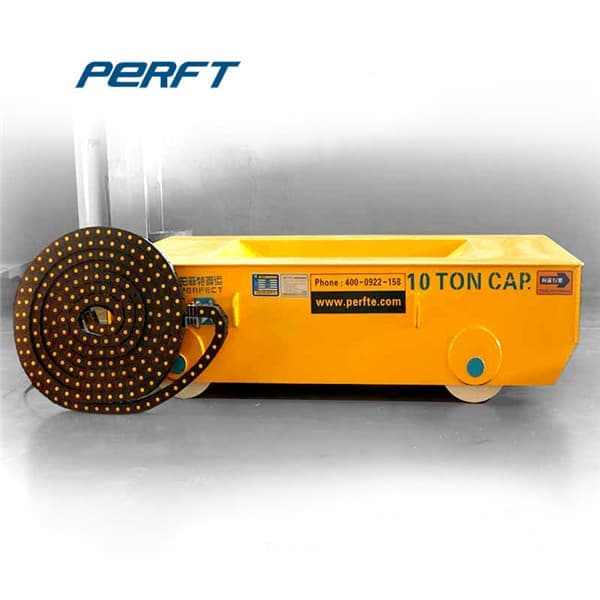

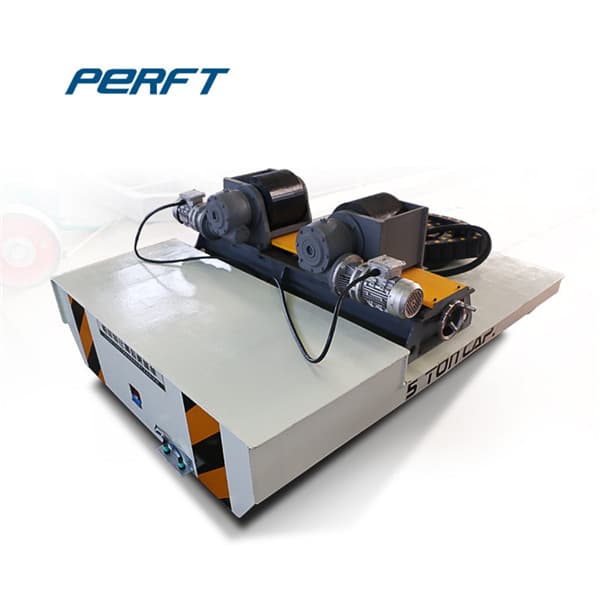

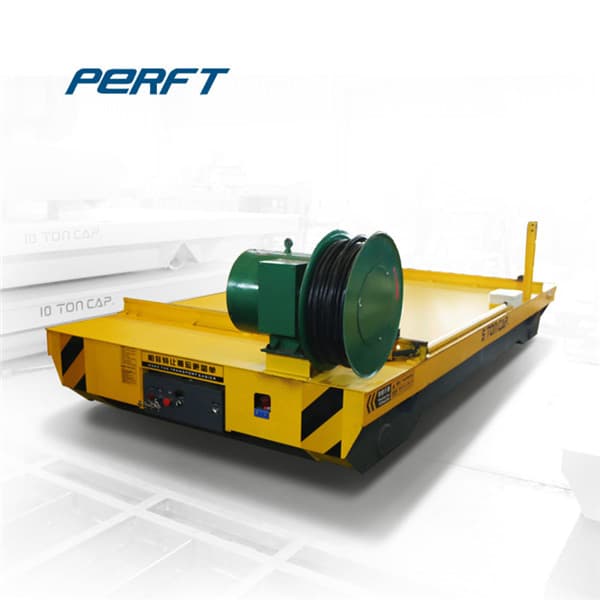

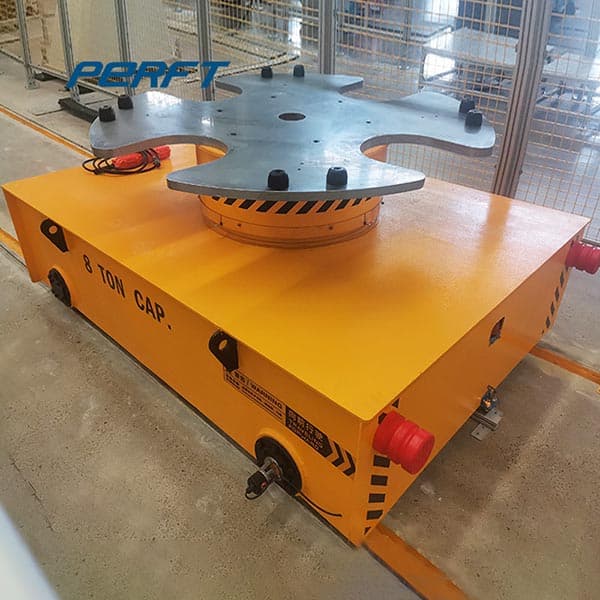

Cable Reel Transfer Cart 1-300 Ton

Feature:

Model: BTL
Capacity load: 1-300t customized
Table size: Can be customized
Power supply: Cable reel
Running distance: ≤20m
Running speed: 0-25m/min
Wheel base:1200-7000mm
Rail inner gauge: 1200-2000mm
Control system: Button control and Remote control

Share With:
Description:

Cable Reel Transfer Cart 1-300 Ton Introduction

AC 380V electricity provides power to the motor on the transfer cart, and the motor drags the transfer cart to run. The cable reel powered rail transit car is simple to operate, easy to maintain, has high safety and mobility flexibility, high frequency, and low noise, the rail electric flat car does not have high requirements for the track, if you need to run Longer distances can be achieved by installing a cable reel, and there is no upper limit of load capacity. At Perfect, you can also receive another cable drum transfer cart.



Cable Reel Transfer Cart 1-300 Ton Product Advantages

  1. High Handling Capability
  2. Easy to Operate
  3. More Safety
  4. High Stability
  5. Used for Indoor or Outdoor
  6. Automation is Stronger
  7. Perfect for Narrow Spaces
  8. Independent and Complementary

Cable Reel Transfer Cart 1-300 Ton Product Features

1. Cable Reel Transfer Cart is cable reel powered, other options such as battery, festoon cable, busbar, low-voltage rails, etc.

2. Cable Reel Transfer Cart is box beam structure, steel wheel. And the material of wheel is cast steel 55.

3. Safety equipment: E-stop button, sound and light alarm, limCable Reel Transfer Cart switch, dead man control, etc.

4. The capacity ranging from 1-300 tons, and the dimensions (length & width) can be made as per your needs.

5. The flat surface is flat decking, coil holder can be installed for your special use.

6.For other special needs, we can design the transfer trolley for you.



Cable Reel Transfer Cart Technical Parameters



Model BTL-2t BTL-5t BTL-10t BTL-16t BTL-20t BTL-25t BTL-30t BTL-40t BTL-50t BTL-63t BTL-80t BTL-100t BTL-150t
Rated Load (t) 2 5 10 16 20 25 30 40 50 63 80 100 150
Table Size (mm) Length 2000 3500 3600 4000 4000 4500 4500 5000 5500 5600 6000 6500 10000
Width 1500 2000 2000 2000 2200 2200 2200 2500 2500 2500 2600 2800 3000
Height 500 550 550 600 600 650 650 700 700 800 900 1000 1200
Wheel Base (mm) 1200 2500 2600 2800 2800 3200 3200 3800 4200 4300 4700 4900 7000
Rail Inner Gauge (mm) 1200 1435 1435 1435 1435 1435 1435 1435 1435 1435 1800 2000 2000
Wheel Diameter (mm) Ф270 Ф270 Ф300 Ф350 Ф350 Ф400 Ф400 Ф500 Ф500 Ф600 Ф600 Ф600 Ф600
Wheel Quantity 4 4 4 4 4 4 4 4 4 4 4 4 8
Ground Clearance (mm) 50 50 50 50 50 50 50 50 50 75 75 75 75
Running Speed (m/min) 0-25 0-25 0-25 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-20 0-18
Motor Power (Kw) 0.8 0.8 1.5 2.2 2.5 3 4 5.5 5.5 7.5 7.5 11 15
Running Distance (m) 25 25 25 25 30 30 50 50 50 50 50 50 50
Max Wheel Load( kn) 14.4 25.8 42.6 64.5 77.7 94.5 110.4 142.8 174 221.4 278.4 343.8 265.2
Recommended Rail Model P15 P18 P18 P24 P24 P38 P38 P43 P43 P50 P50 QU100 QU100


For more details, you can read the solutions article about Understanding Cable Reel Transfer Cart.
