Feature:
Load capacity: Can be customized
Table size: Can be customized
Power supply: Battery/Cable reel/Cable drum /Busbar/Low voltage rail
Control system: Button control and Remote control /PLC system

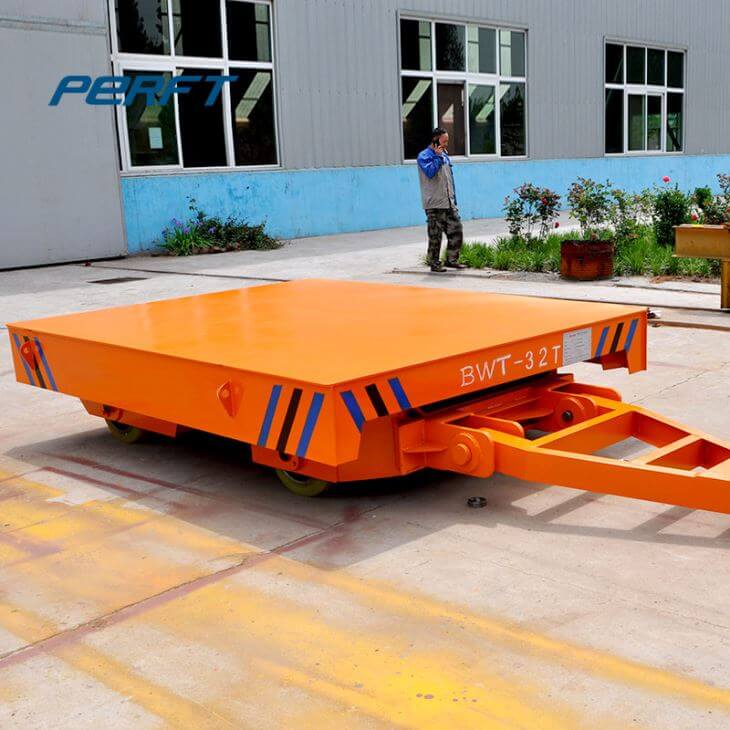

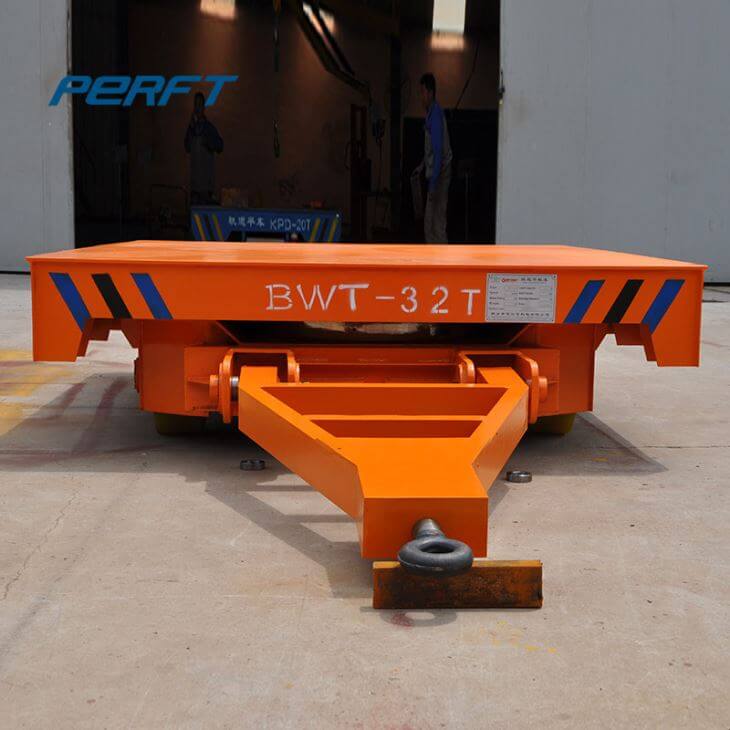

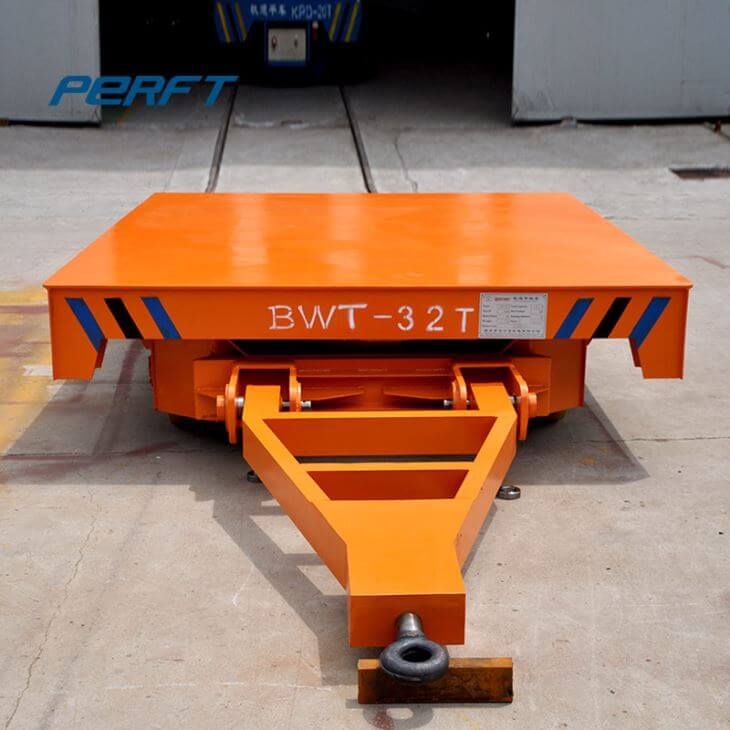

PERFECT’s industrial heavy-duty truck trailer can transport a large amount of material between the floor and the ramp, and overlap each other to create a large-capacity material handling train. They are a key component of the “choose shopping cart” strategy, in which order pickers fill up the trailer with a large capacity, while the tug ships in batches to collect items in batches. These industrial heavy-duty truck trailers are very suitable for order-picking applications and can be used as a supplement or even substitute for crane trucks. The manufacturing plant also uses Tugger trailers to move materials from one point on the production line to the next. Rather than carrying a single cargo at a time like a forklift, a train tractor-trailer allows the tractor operator to transport multiple cargoes in a single trip. The heavy-duty steel structure with a durable powder-coated surface makes the industrial Tugger trailer suitable for harsh industrial environments. Custom designs can be used for specific applications.
1 Body size: 4000*2500*500mm
2 Load: 3T, 5T
3 Body structure: Q235 channel steel main beam, the countertop is paved with national standard steel plate
4 Wheels: 4 cast steel wheels for flatbed trailers,
5 Steering device: one-way traction turntable steering
6 Traction: the folding rectangular tube traction frame can be adjusted up and down;
7 Surface treatment; smoothing, rust removal of the vehicle. Primer plus topcoat.
Commonly used in factories, railway stations, workshops, hauling materials, pallets, and goods. Baggage handling at the station.
